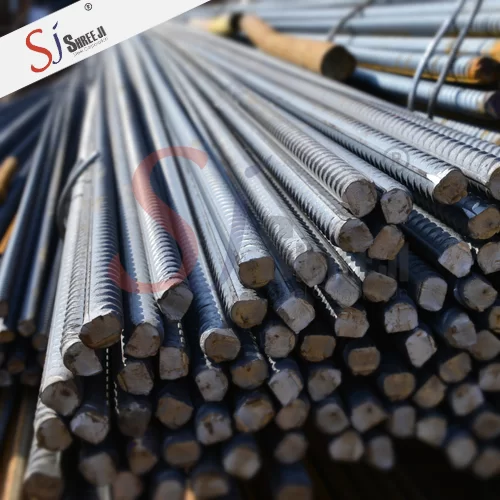

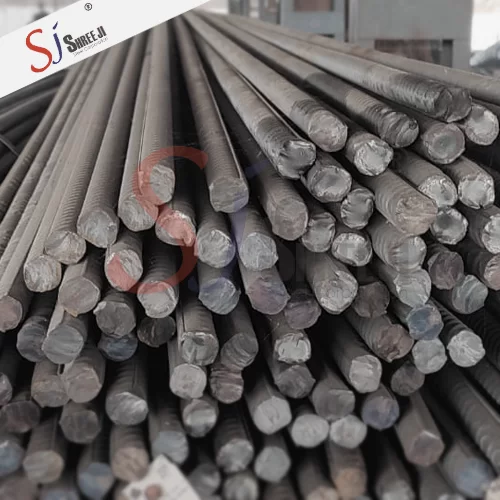

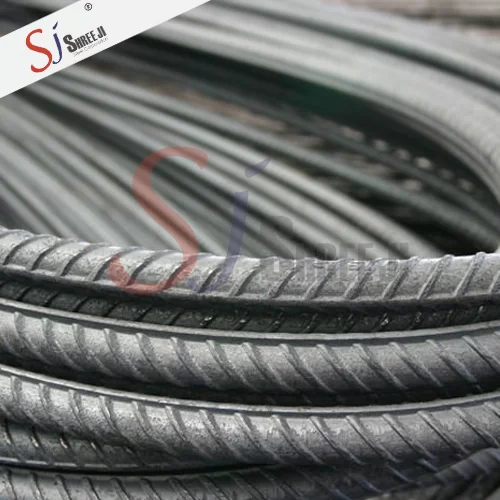

Lightweight TMT Bar
Price On Request
Shree Ji Steel Corporation has been providing the best quality products to its patrons for a long time now. We provide Lightweight TMT Bar produced at well developed using best quality materials, in order to meet industry norms and customer requirements. These bars are uniquely being provided by us to our patrons. These bars have a very unique feature of being much lighter in weight than the general TMT Bars and also are very cost effective.
We provide these bars at affordable prices.
|Size (MM)||Price (INR/METRIC TON)||Quantity||Add To Enquiry|
|Lightweight TMT Bar 8mm||Price On Request||
|Lightweight TMT Bar 10mm||Price On Request||
|Lightweight TMT Bar 12mm||Price On Request||
|Lightweight TMT Bar 16mm||Price On Request||
Prices as on: 28-12-2018 12:50:52pm
1. Rates: Subject to change as per the hourly market situation and will be valid only after formal discussion.
2. Tax: Goods and Service Tax @ 18 % to be charged on the bill amount.
3. Prices: Ex- Durgapur/ Kolkata, West Bengal.
4. Dispatch Time: 1-5 working days.
5. Transportation: To be charged extra.
6. Minimum Order Quantity: 10 Metric Ton.
7. Packaging Type: Bundles /’U’ Bends.
8. Payment Modes: L/C (Letter of Credit), T/T (Bank Transfer), RTGS/NEFT, Cheque
9. 100% payment to be made in advance.
10. Products are subject to availability.
Product Tags : Reinforcing Steel Bar, Steel Rebar, Thermo Mechanically Treated TMT Bars, TMT Iron, TMT, TMT Rebar, Tor Bar.
- Additional information
- Weight Chart
|Single Piece Length||
Improve safety and durability of structures, making it cost effective
|Lightweight TMT Bar Sizes and Weights|
|Size (in mm)||Weight ( in Kg/Bundle)||Pieces (Pcs/per Bundle)|
|Lightweight TMT Bar 8mm||50-51||12|
|Lightweight TMT Bar 10mm||50-51||08|
|Lightweight TMT Bar 12mm||48-49||05|
|Lightweight TMT Bar 16mm||51-52||03|
Chemical Properties of Lightweight TMT Bars
|Components||Chemical Composition Of Lightweight TMT Bars
The raw material (Billets) which are used for making Bars must have the following chemical composition which we make sure is present in the bars we provide.
|Sulphur & Phosphorus (%)||0.70|
Mechanical Properties of Lightweight TMT Bars
|Mechanical Properties of Lightweight TMT Bars|
|Sizes||0.2% Proof Stress
|0.2% Proof Stress
|TS/YS Ratio||Elongation (%)||Total Elongation at max force (%)||Bend Test||Re-bend Test|
|Lightweight TMT Bar 8mm||530||550||635||1.19||22.00||8.20||ok||Pass|
|Lightweight TMT Bar 10mm||530||550||635||1.19||22.00||8.20||ok||Pass|
|Lightweight TMT Bar 12mm||530||550||635||1.19||20.00||8.20||ok||Pass|
|Lightweight TMT Bar 16mm||530||550||635||1.19||22.00||8.20||ok||Pass|
