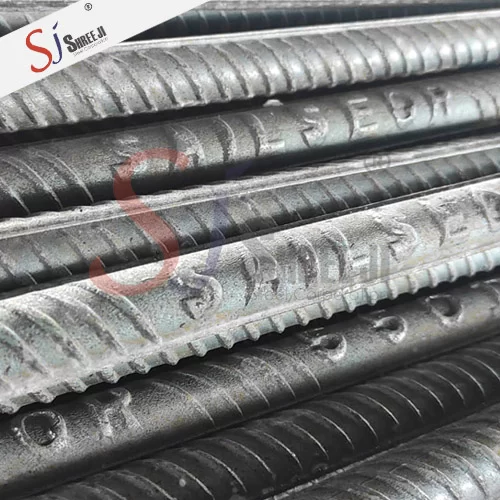

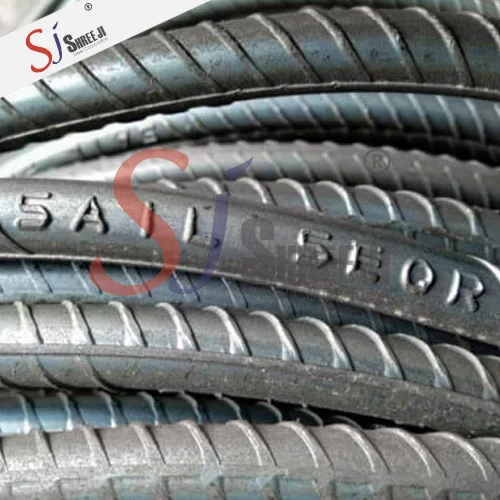

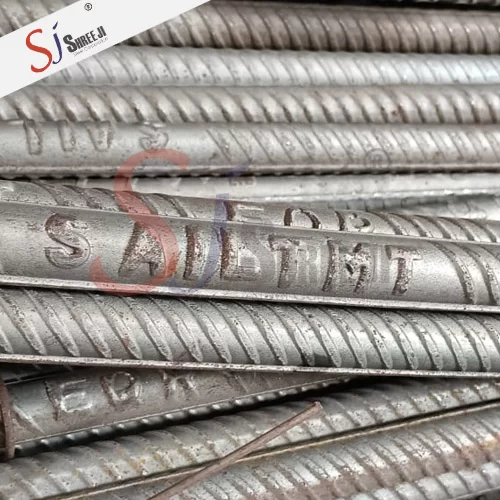

SAIL TMT Bar
₹0.00 – ₹45,500.00
We are a renowned firm in the domain of providing SAIL TMT Bars. SAIL TMT Bars have excellent bend ability, good weld ability and also possess high fatigue resistance on dynamic loading. Apart from this, these bars also possess high corrosion resistance properties. These SAIL TMT Bars are used for Reinforced Concrete Construction (RCC) in buildings, bridges and other concrete structures. SAIL TMT EQR is also used for construction in earthquake prone zones.
|Size (MM)||Price (INR/METRIC TON)||Quantity||Add To Enquiry|
|SAIL TMT Bar 8mm||₹45,500.00||
|SAIL TMT Bar 10mm||₹44,500.00||
|SAIL TMT Bar 12mm||₹43,500.00||
|SAIL TMT Bar 16mm||₹43,500.00||
|SAIL TMT Bar 20mm||₹42,500.00||
|SAIL TMT Bar 25mm||₹42,500.00||
|SAIL TMT Bar 28mm||₹42,500.00||
|SAIL TMT Bar 32mm||₹42,500.00||
|SAIL TMT Bar 36mm||Price On Request||
|SAIL TMT Bar 40mm||Price On Request||
Prices as on: 26-12-2018 03:10:39pm
1. Rates: Subject to change as per the hourly market situation and will be valid only after formal discussion.
2. Tax: Goods and Service Tax @ 18 % to be charged on the bill amount.
3. Prices: Ex- Durgapur/ Kolkata, West Bengal.
4. Dispatch Time: 1-5 working days.
5. Transportation: To be charged extra.
6. Minimum Order Quantity: 10 Metric Ton.
7. Packaging Type: Bundles /’U’ Bends.
8. Payment Modes: L/C (Letter of Credit), T/T (Bank Transfer), RTGS/NEFT, Cheque
9. 100% payment to be made in advance.
10. Products are subject to availability.
Product Tags : Tor Steel, TMT Steel Bars, TMT Sariya, TMT Round Bar, TMT Rod, SAIL TMT EQR, SAIL TMT, Mild Steel TMT Bars
- Additional information
- Weight Chart
|Single Piece Length||
(Steel Authority of India) SAIL
Improve safety and durability of structures
|SAIL TMT Bar Sizes and Weights|
|Size (in mm)||Weight ( in kg/m)||Weight (in kg/feet)|
|SAIL TMT Bar 5.5mm||0.186||0.056|
|SAIL TMT Bar 8mm||0.395||0.120|
|SAIL TMT Bar 10mm||0.617||0.188|
|SAIL TMT Bar 12mm||0.890||0.271|
|SAIL TMT Bar 16mm||1.580||0.482|
|SAIL TMT Bar 20mm||2.470||0.753|
|SAIL TMT Bar 25mm||3.850||1.173|
|SAIL TMT Bar 28mm||4.830||1.472|
|SAIL TMT Bar 32mm||6.310||1.923|
|SAIL TMT Bar 36mm||7.990||2.435|
|SAIL TMT Bar 40mm||9.85||3.002|
|SAIL TMT Bar 45mm||12.5||3.81|
Chemical Properties of SAIL TMT Bars
|Components||Chemical Composition Of SAIL TMT Bars
The raw material (Billets) which are used for making Bars must have the following chemical composition which SAIL maintains.
|Carbon (Max %)||0.25-0.30|
|Sulphur (Max %)||0.40|
|Phosphorus (Max %)||0.40|
|Sulphur & Phosphorus (Max %)||0.75|
|Alloying/ Micro Alloying||0.3% Max|
Mechanical Properties of SAIL TMT Bars
|Mechanical Properties of SAIL TMT Bars|
|Sizes||Yield Strength (Mpa)
|Yield Strength (Mpa)
|Ultimate Tensile Strength
|UTS/YS (min)||Elongation (%)||Uniform Elongation (min %)|
|Fe415S EQR||415||540||1.25 times YS||1.25||18||8|
|Fe415S HCR EQR||415||540||1.25 times YS||1.25||18||8|
|Fe500S EQR||500||625||1.25 times YS||1.25||16||8|
|Fe500S HCR EQR||500||625||1.25 times YS||1.25||16||8|
