Vizag TMT Bars
₹42,500.00 – ₹45,000.00

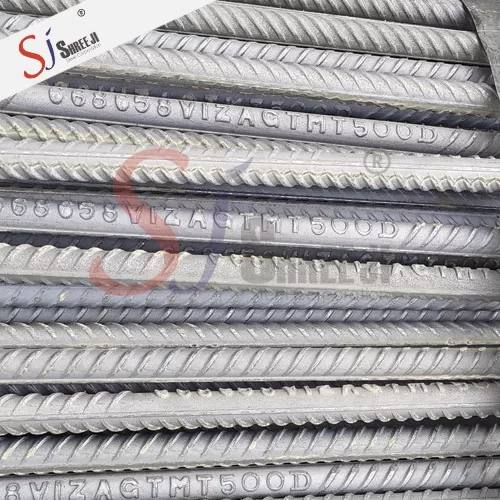

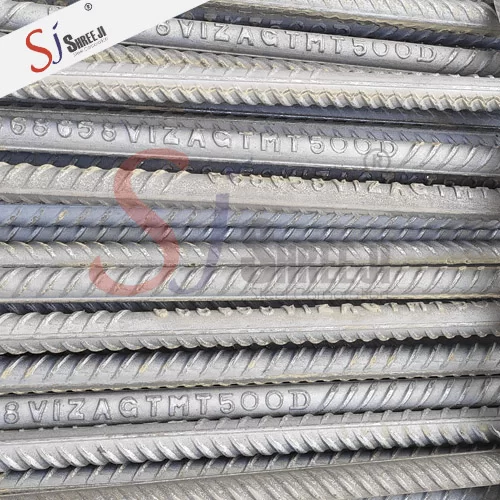

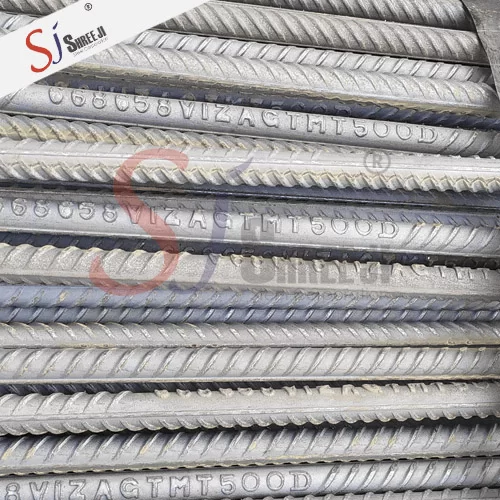

VIZAG TMT bars possess high strength as well as excellent ductility. These bars are made using virgin steel in Blast Furnace. Steel is made from best quality raw materials. And the rolling is carried out in the mills with latest technology. It is made sure that no Rebars are produced by conversion. The tough outer and ductile core of the VIZAG TMT bars, result in excellent bend ability. This coupled with a high resistance to low temperature brittle fracture, allows these bars to be bent, without any fear of failure.
|Size (MM)||Price (INR/METRIC TON)||Add To Enquiry|
|Vizag RINL TMT Bar 8mm||₹45,000.00|
|Vizag RINL TMT Bar 10mm||₹44,000.00|
|Vizag RINL TMT Bar 12mm||₹43,000.00|
|Vizag RINL TMT Bar 16mm||₹43,000.00|
|Vizag RINL TMT Bar 20mm||₹42,500.00|
|Vizag RINL TMT Bar 25mm||₹42,500.00|
|Vizag RINL TMT Bar 28mm||₹42,500.00|
|Vizag RINL TMT Bar 32mm||₹42,500.00|
Prices as on: 19-03-2019 05:28:14pm
1. Rates: Subject to change as per the hourly market situation and will be valid only after formal discussion.
2. Tax: Goods and Service Tax @ 18 % to be charged on the bill amount.
3. Prices: Ex- Durgapur/ Kolkata, West Bengal.
4. Dispatch Time: 1-5 working days.
5. Transportation: To be charged extra.
6. Minimum Order Quantity: 10 Metric Ton.
7. Packaging Type: Bundles /’U’ Bends.
8. Payment Modes: L/C (Letter of Credit), T/T (Bank Transfer), RTGS/NEFT, Cheque
9. 100% payment to be made in advance.
10. Products are subject to availability.
Product Tags : Vizag TMT, vizag tmt 500d bar, vizag tmt steel
- Additional information
- Weight Chart
|Single Piece Length||
Easy bendability, ductability, weldability, economical and safe to use.
|Vizag RINL TMT Bar Sizes and Weights|
|Size (in mm)||Weight ( in kg/m)||Weight (in kg/feet)|
|Vizag RINL TMT Bar 8mm||0.363 to 0.426||0.110 to 0.129|
|Vizag RINL TMT Bar 10mm||0.567 to 0.666||0.172 to 0.203|
|Vizag RINL TMT Bar 12mm||0.835 to 0.941||0.254 to 0.286|
|Vizag RINL TMT Bar 16mm||1.501 to 1.659||0.457 to 0.505|
|Vizag RINL TMT Bar 18mm||1.940 to 2.060||0.591 to 0.627|
|Vizag RINL TMT Bar 20mm||2.396 to 2.544||0.730 to 0.775|
|Vizag RINL TMT Bar 25mm||3.735 to 3.966||1.138 to 1.208|
|Vizag RINL TMT Bar 28mm||4.685 to 4.975||1.427 to 0.516|
|Vizag RINL TMT Bar 32mm||6.121 to 6.499||1.865 to 1.981|
|Vizag RINL TMT Bar 36mm||7.750 to 8.230||2.362 to 2.508|
|Vizag RINL TMT Bar 40mm||9.564 to 10.156||2.915 to 3.095|
Chemical Properties of Vizag RINL TMT Bars
|Components||Chemical Composition Of Vizag RINL TMT Bars
The raw material (Billets) which are used for making Bars must have the following chemical composition, which the company maintains.
|Manganese (%)||0.75 – 1.15|
|Chromium (%)||0.010- 0.032|
Mechanical Properties of Vizag RINL TMT Bars
|Mechanical Properties of Vizag RINL TMT Bars|
|UTS/YS Ratio||Elongation (%)|
|Vizag RINL TMT Bar 8 mm||550||648||1.18||22.0|
|Vizag RINL TMT Bar 10 mm||550||648||1.18||22.0|
|Vizag RINL TMT Bar 12 mm||550||648||1.18||22.0|
|Vizag RINL TMT Bar 16 mm||550||648||1.18||22.0|
|Vizag RINL TMT Bar 18 mm||550||648||1.18||22.0|
|Vizag RINL TMT Bar 20 mm||550||648||1.18||22.0|
|Vizag RINL TMT Bar 22 mm||550||648||1.18||22.0|
|Vizag RINL TMT Bar 25 mm||550||648||1.18||22.0|
|Vizag RINL TMT Bar 28 mm||550||648||1.18||22.0|
|Vizag RINL TMT Bar 32 mm||550||648||1.18||22.0|
|Vizag RINL TMT Bar 36 mm||550||648||1.18||22.0|
|Vizag RINL TMT Bar 40 mm||550||648||1.18||22.0|
