Iron Beam – Premium Quality Iron Beam for Construction & Industrial Use

Iron Beam, I Beams and Steel Beams are all metal section elements renowned for their strength and durability. Their distinctive shape, resembling the letter "I," allows them to bear heavy loads and provide reliable structural support. These beams have a high strength-to-weight ratio, which makes every Iron Beam ideal for constructing buildings, bridges, and other large structures.

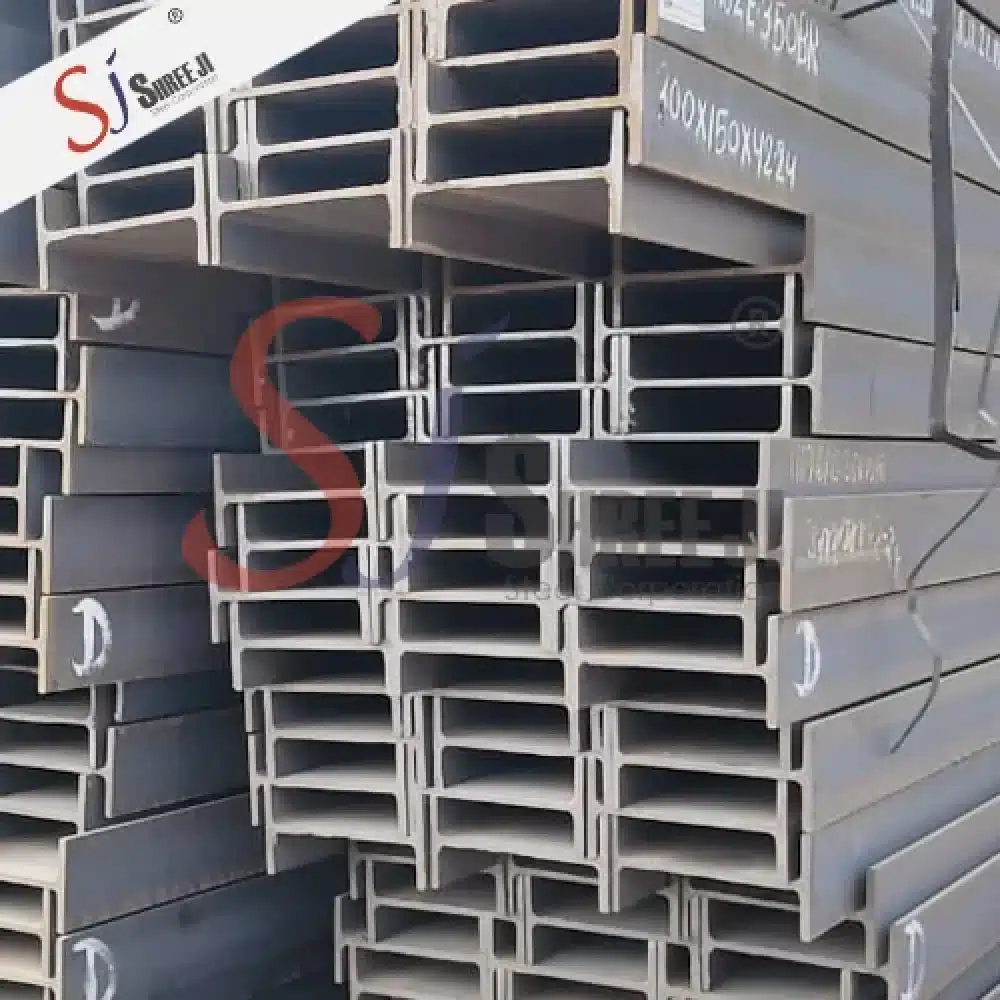

Iron Beam I-Section by Shree Ji Steel

We at Shree Ji Steel Private Limited (formerly Shree Ji Steel Corporation) offer an essential component for construction and engineering projects, including I Beams. These Iron Beams are widely used for the construction of flyovers, pedestrian walkovers, factory sheds, conveyors, and boilers. Each Iron Beam is available in various sizes, weights, and load-bearing capacities, ensuring versatility and adaptability for diverse applications. The company adheres to strict quality norms, resulting in a superior Iron Beam range that meets structural integrity and safety requirements.

Shree Ji Steel Private Limited ensures a steady supply of Iron Beam stock for construction projects across industries. Contractors, architects, and engineers all rely on these beams for their structural needs. The diverse range of Iron Beam sizes meets the specific requirements of varied applications. With a focus on quality and precision, Shree Ji Steel Private Limited continues to contribute to the development of the steel and construction industries.

Iron Beam Price Chart

The price of an Iron Beam depends on the size, section weight, grade, and current market conditions. Below is an indicative Iron Beam price list across standard sizes.

Item Name Size Price Unit
Iron Beam100 × 50 mmPrice on RequestPer Ton
Iron Beam100 × 60 mmPrice on RequestPer Ton
Iron Beam120 × 70 mmPrice on RequestPer Ton
Iron Beam125 × 70 mmPrice on RequestPer Ton
Iron Beam125 × 75 mmPrice on RequestPer Ton
Iron Beam150 × 75 mmPrice on RequestPer Ton
Iron Beam175 × 85 mmPrice on RequestPer Ton
Iron Beam200 × 100 mmPrice on RequestPer Ton
Iron Beam250 × 125 mmPrice on RequestPer Ton
Iron Beam300 × 140 mmPrice on RequestPer Ton
Iron Beam350 × 140 mmPrice on RequestPer Ton
Iron Beam400 × 140 mmPrice on RequestPer Ton
Iron Beam450 × 150 mmPrice on RequestPer Ton
Iron Beam500 × 180 mmPrice on RequestPer Ton
Iron Beam600 × 210 mmPrice on RequestPer Ton

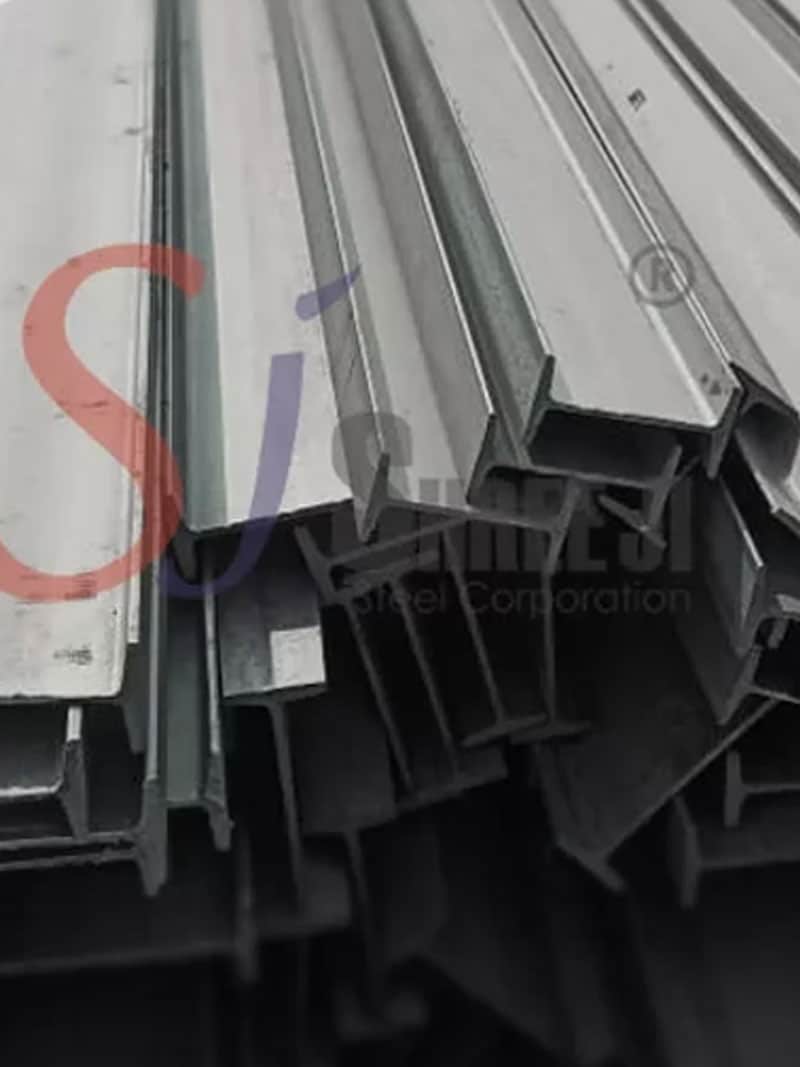

Iron Beam Stack at Shree Ji Steel Warehouse
Terms & Conditions (Ex-Works Pricing)
  • The rates are ex-works from the nearest dispatch location.
  • GST @ 18% will be charged extra.
  • Loading @ Rs 365/- per MT will be charged extra.
  • Transit insurance will be charged extra @ Rs 40/- per ton.
  • Transportation costs will be charged extra.
  • Payment of 100% advance along with the order, through bank transfer.
  • Dispatch within 1–7 working days from receipt of advance.
  • Material is of commercial grade as per IS 2062.
  • Mill TC can be provided.
  • Material lengths for trailer and lorry loading would be 11–13 metres and 5.5–6.5 metres, respectively.
  • An additional fee of Rs 300 to Rs 500 per MT may be applied to fixed-length projects, depending on size, amount and availability.
  • Actual dispatch quantity may differ ± 10%.
  • Weight tolerance ± 0.5% is to be allowed.
  • Rates are subject to minimum order quantity and hourly market conditions.
  • Rates at the time of receipt of advance will be final.
  • Offer is valid till the end of business hours today. Kindly reconfirm before placing an order.

Iron Beam Weight Chart

Every Iron Beam is manufactured with a defined weight per meter so that contractors and fabricators can plan their material requirement accurately. The table below lists the weight per meter, weight per foot, and approximate running length per ton for each Iron Beam size.

Item Size (mm) Weight/Meter (Kg) Weight/Foot (Kg) Weight per 12 m Pc (Kg) Pieces in 1 MT Running Mtr in 1 MT
Iron Beam100 × 50 × 4.78.952.731079112
Iron Beam125 (Light)11.873.62142784
Iron Beam125 × 70 × 513.354.07160675
Iron Beam150 × 75 × 514.964.56180667
Iron Beam175 (Light)16.595.06199560
Iron Beam175 × 85 × 5.819.505.94234451
Iron Beam200 × 100 × 5.724.177.37290341
Iron Beam250 × 125 × 6.937.3011.37448227
Iron Beam300 × 140 × 7.746.0214.03552222
Iron Beam350 × 140 × 8.152.3315.95628219
Iron Beam400 × 140 × 8.961.5518.76739116
Iron Beam450 × 150 × 9.472.3822.06869114
Iron Beam500 × 180 × 10.286.8826.481043112
Iron Beam600 × 210 × 12121.0036.88145218
Tolerance as per IS 808:2021
  • Depth tolerance up to 200 mm depth is +3.0 / -2.0 mm; for 200–400 mm it is ±3.0 mm; and for 400–600 mm it is ±4.0 mm.
  • Flange width tolerance is ±2.0 mm for beams below 100 mm width, ±2.5 mm for flange width between 100–125 mm, and ±4.0 mm for flange width 125–250 mm.
Iron Beam Chemical Composition (In % Max Values)
Element Value
Carbon %0.20
Manganese Max %0.89
Sulphur Max %0.035
Phosphorous Max %0.041
Silicon Max %0.24
Carbon Equivalent0.37
Iron Beam Mechanical Properties (In % Max Values)
Property Value
Tensile Strength Min, MPa340.45
Yield Stress Min, MPa525.36
% Elongation (gauge length 5.65 √So)31.8
Bend TestOK
Product Details

Additional Information

Country of Origin

Made in Bharat (India)

Material

Mild Steel

Test Certification

ISI Test Certificate & Mill TC Available

Shape

I Shape

Size Range

100×50 mm to 600×210 mm

Minimum Order Quantity

25 Metric Ton

Packaging

Bundles

HSN Code

72161000, 72163200, 72163300, 72165000

Dispatch Time

1–7 Working Days

Including GST Price of Iron Beam

Item Name Size Price Unit
Iron Beam100 × 50 mmPrice on RequestPer Ton
Iron Beam100 × 60 mmPrice on RequestPer Ton
Iron Beam120 × 70 mmPrice on RequestPer Ton
Iron Beam125 × 70 mmPrice on RequestPer Ton
Iron Beam125 × 75 mmPrice on RequestPer Ton
Iron Beam150 × 75 mmPrice on RequestPer Ton
Iron Beam175 × 85 mmPrice on RequestPer Ton
Iron Beam200 × 100 mmPrice on RequestPer Ton
Iron Beam250 × 125 mmPrice on RequestPer Ton
Iron Beam300 × 140 mmPrice on RequestPer Ton
Iron Beam350 × 140 mmPrice on RequestPer Ton
Iron Beam400 × 140 mmPrice on RequestPer Ton
Iron Beam450 × 150 mmPrice on RequestPer Ton
Iron Beam500 × 180 mmPrice on RequestPer Ton
Iron Beam600 × 210 mmPrice on RequestPer Ton
Terms & Conditions (Inclusive of GST)
  • The rates are ex-works from the nearest dispatch location.
  • All rates are inclusive of 18% GST.
  • All rates are inclusive of loading charges.
  • All rates are inclusive of transit insurance charges.
  • Transportation costs will be charged extra.
  • Payment of 100% advance along with the order, through bank transfer.
  • Dispatch within 1–7 working days from receipt of advance.
  • Material is of commercial grade as per IS 2062.
  • Mill TC can be provided.
  • Trailer length 11–13 m; lorry length 5.5–6.5 m.
  • An additional fee of Rs 300 to Rs 500 per MT may apply for fixed-length projects.
  • Actual dispatch quantity may differ ± 10%; weight tolerance ± 0.5%.
  • Rates are subject to MOQ and hourly market situation.
  • Rates at the time of receipt of advance will be final. Kindly reconfirm before placing an order.

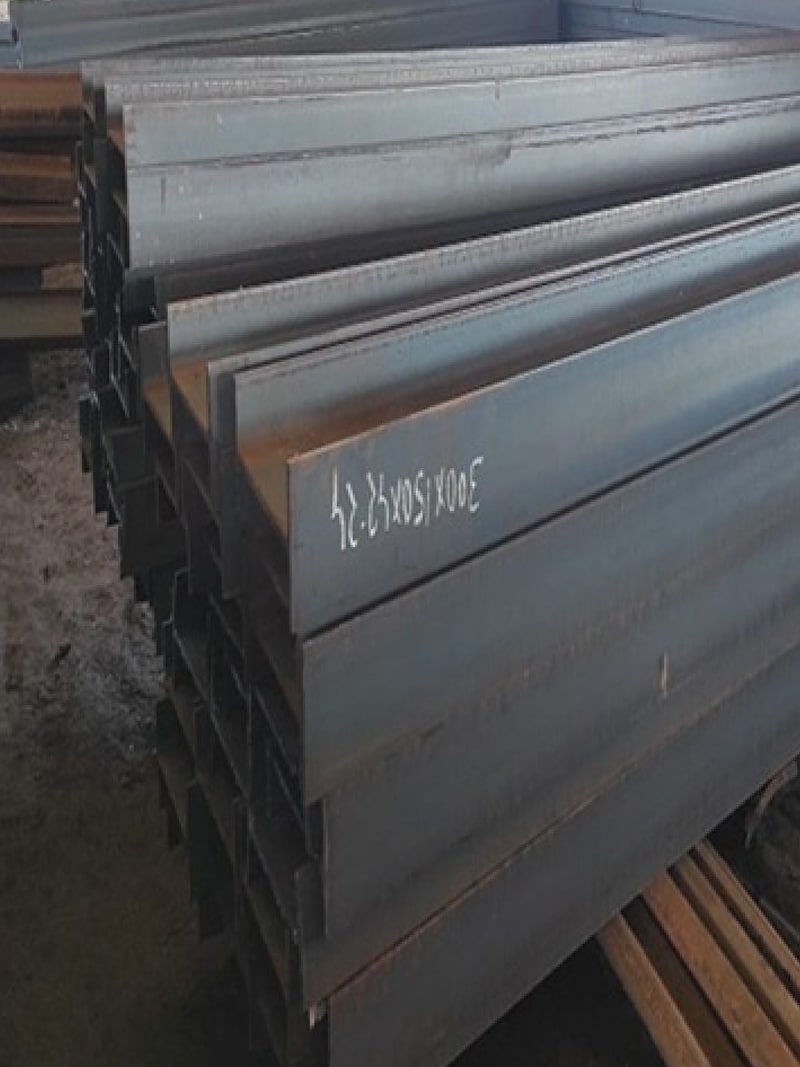

Stack of Iron Beams ready for dispatch
FAQs

Frequently Asked Questions about Iron Beam

We supply Iron Beam from SAIL, JSPL, and other prominent mills. The availability of a particular brand is subject to stock at the time of order.

Yes. The available sizes include 125×70×5 mm (13.35 Kg/m) and 150×75×5 mm (14.96 Kg/m).

Yes, the 10-inch Iron Beam (250 mm) is available at Shree Ji Steel Private Limited, subject to stock availability.

Typically 10 metric tons for buyers closer to the dispatch point, and 25 metric tons or more for distant locations.

For most construction purposes, our Iron Beam is manufactured from IS 2062 E250 grade mild steel, ensuring consistent strength and weldability.

No, this specific size combination is not part of our regular Iron Beam range.

Yes, an Iron Beam is typically supplied in standard lengths of 10.5 to 12.5 metres. Supply of fixed-length beams depends on availability at the manufacturing or sourcing unit at the time of dispatch.

Yes, custom-size Iron Beam orders can be placed with us. Confirmation is subject to material availability at the sourcing point.

The price is calculated per metric ton, based on the section size, current raw material rates, GST, loading, insurance, and transportation charges as applicable.

Yes, every Iron Beam shipment can be accompanied by an ISI test certificate and Mill TC on request, confirming compliance with IS 2062 standards.

Whether you need a single Iron Beam for a small fabrication job or bulk quantities for a large infrastructure project, Shree Ji Steel Private Limited delivers tested, certified, and competitively priced Iron Beam sections backed by reliable dispatch and documentation support. Get in touch with our team today for the latest Iron Beam price list and availability.
