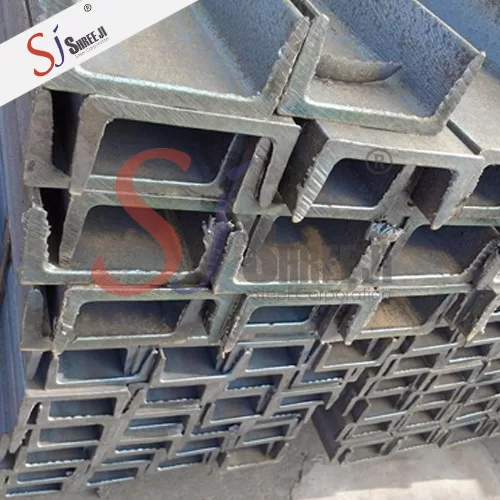

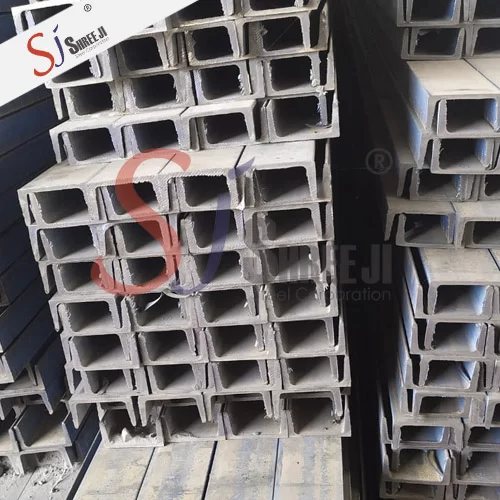

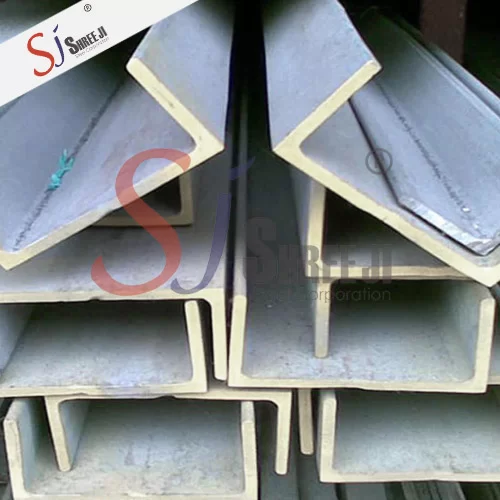

MS Channel (Durgapur)

Shree Ji Steel Private Limited (formerly Shree Ji Steel Corporation) provides a huge supply of premium quality MS channels to our customers and clients located worldwide. Our main goal is to satisfy our customers with the most superior quality C-section steel or C channels. These are mostly used in building construction and civil engineering. They are widely used for the manufacture of truck trailers, boilers, conveyors, factory sheds, bus bodies, bridges, flyovers and agricultural equipment.

Shree Ji Steel Corporation is a reliable supplier of ISMC (Indian Standard Medium Channel). They offer a wide range of ISMC sizes including ismc 75, ismc 100, ismc 125, ismc 150, ismc 200, ismc 250, ismc 300 and ismc 400. These ISMC channels are highly strong, but at the same time flexible. They are quite equipped to resist a good amount of load.

The company uses advanced technology and high-grade raw materials to offer C Channel products, ensuring superior quality and longevity. We have innovative ideas in the construction area which enable us to be the best in serving and distributing MS C channels of supreme quality. We supply our products at a very reasonable price in the market. Our customers are very much satisfied with this price range. Our commitment to quality, reliability and customer satisfaction makes us a top choice for those looking for ISMC and other C Channel steel products.

MS CHANNEL PRICE LIST TODAY

ITEAM NAMESIZEPRICEUNIT
MS CHANNEL75x40mm₹49,250Per Ton
MS CHANNEL100x50mm₹49,250Per Ton
MS CHANNEL75x40mm(light)₹49,750Per Ton
MS CHANNEL100x50mm(light)₹49,750Per Ton
MS CHANNEL75x40mm(Ultra light)₹50,750Per Ton
MS CHANNEL100x50mm(Ultra light)₹50,750Per Ton
MS CHANNEL125mm₹48,750Per Ton
MS CHANNEL150mm₹48,750Per Ton
MS CHANNEL175mm₹51,000Per Ton
MS CHANNEL200mm₹49,500Per Ton
MS CHANNEL250mm₹50,500Per Ton
MS CHANNEL300mm₹52,750Per Ton
MS CHANNEL400mm₹54,750Per Ton
GATE CHANNEL(Heavy/Light)₹53,750Per Ton
Last updated on 26/04/2024 14:11:21

Terms and Conditions :
1. The rates are ex works Durgapur, West Bengal.
2. GST @ 18% will be charged extra.
3. Loading @ Rs 275/- per mt will be charged extra
4. Transit Insurance will be charged extra @ Rs 40/- per ton.
5. Transportation costs will be charged extra.
6. Payment of 100% advance along with the order. Through bank transfer.
7. Dispatch 1-7 working days from receipt of advance.
8. Material is of commercial grade as per IS 2062.
9. Mill TC can be Provided.
10. Length of material would be 10-14 meter for trailer loading and 5-7 meter for lorry loading.
11. For fixed length, an additional fee of between Rs.500 and Rs.1000 per metric tonne would apply, depending on the size, quantity, and availability of the material.
12. Actual dispatch quantity may differ +/- 10%.
13. Weight tolerance +/- 0.5% is to be allowed.
14. Rates are subject to minimum order quantity.
15. Rates are subject to change as per the hourly market situation
16. Rates at the time of receipt of advance will be final.
17. Offer is valid till the end of business hours today.
18. Products are subject to availability.
19. Above rates are indicative of market prices. Kindly reconfirm the prices before placing an order.

Price Chart History

Additional Information

ISMC WEIGHT CHART

Item Size (in mm)Weight Per Meter In KG Weight Per Foot in KGWeight Per 12 Meter PcsApproximate Pieces In 1 Ton (single Piece Length 12 Meter)Approximate Running Meter Length In 1 (one) Ton
ISMC 75 75X40X3.7mm (Ultra Light)5.201.586216.03192.31
ISMC 75 75X40X3.7mm (Light)5.701.746814.62175.44
ISMC 75 75X40X4.8mm (Heavy)7.142.188611.67140.06
ISMC 100 100X45X3mm (Ultra Light)5.801.777014.37172.41
ISMC 100 100X50X4mm (Light)7.902.419510.55126.58
ISMC 100 100X50X5mm (Heavy)9.562.911158.72104.60
ISMC 125 125X65X5.3mm13.103.991576.3676.34
ISMC 150 150X75X5.7mm16.805.122024.9659.52
ISMC 175 175X75X6mm19.605.972354.2551.02
ISMC 200 200X75X6.2mm22.306.802683.7444.84
ISMC 250 250X82X9mm34.2010.424102.4429.24
ISMC 300 300X90X7.8mm36.3011.064362.3027.55
ISMC 400 400X100X8.8mm50.1015.276011.6619.96
Gate Channel20x10x3mm (Gate Channel)0.800.2410104.041248.44

MS CHANNEL CHEMICAL COMPOSITION: (IN % MAXVALUES)
Carbon %0.23
ManganeseMax %0.90
SulphurMax %0.029
PhosporousMax %0.040
SiliconMax %0.26
Carbon Equivalent0.36
CHANNEL MECHANICAL COMPOSITION: (IN % MAXVALUES)
Tensile Strength Min, Mpa375
Yield Stress, Min, MPa551
% Elongation30.14
Bend Testok
ADDITIONAL INFORMATION OF MS CHANNEL
Country Of OriginMade in Bharat (INDIA)
Dispatch LocationDurgapur (West Bengal)
MaterialMild Steel
Test CertificationISI Test Certificate & Mill TC Available
ShapeC Shape
Size75X40X4.8 mm to 400X100X8.8 mm
Minimum Order Quantity (MOQ)25 Metric Ton
Packaging DetailsBundles
HSN Code72165000, 72161000, 72163100, 72165000, 72169930, 72163300

Additional Information

ItemSize (in mm)Weight Per Meter In KGWeight Per Foot in KGWeight Per 12 Meter PcsApproximate Pieces In 1 Ton (single Piece Length 12 Meter)Approximate Running Meter Length In 1 (one) Ton
ISMC 7575X40X3.7mm (Ultra Light)5.201.586216.03192.31
ISMC 7575X40X3.7mm (Light)5.701.746814.62175.44
ISMC 7575X40X4.8mm (Heavy)7.142.188611.67140.06
ISMC 100100X45X3mm (Ultra Light)5.801.777014.37172.41
ISMC 100100X50X4mm (Light)7.902.419510.55126.58
ISMC 100100X50X5mm (Heavy)9.562.911158.72104.60
ISMC 125125X65X5.3mm13.103.991576.3676.34
ISMC 150150X75X5.7mm16.805.122024.9659.52
ISMC 175175X75X6mm19.605.972354.2551.02
ISMC 200200X75X6.2mm22.306.802683.7444.84
ISMC 250250X82X9mm34.2010.424102.4429.24
ISMC 300300X90X7.8mm36.3011.064362.3027.55
ISMC 400400X100X8.8mm50.1015.276011.6619.96
Gate Channel20x10x3mm (Gate Channel)0.800.2410104.041248.44
Carbon %ManganeseMax %SulphurMax %PhosporousMax %SiliconMax %Carbon Equivalent

0.230.900.0290.0400.260.36
