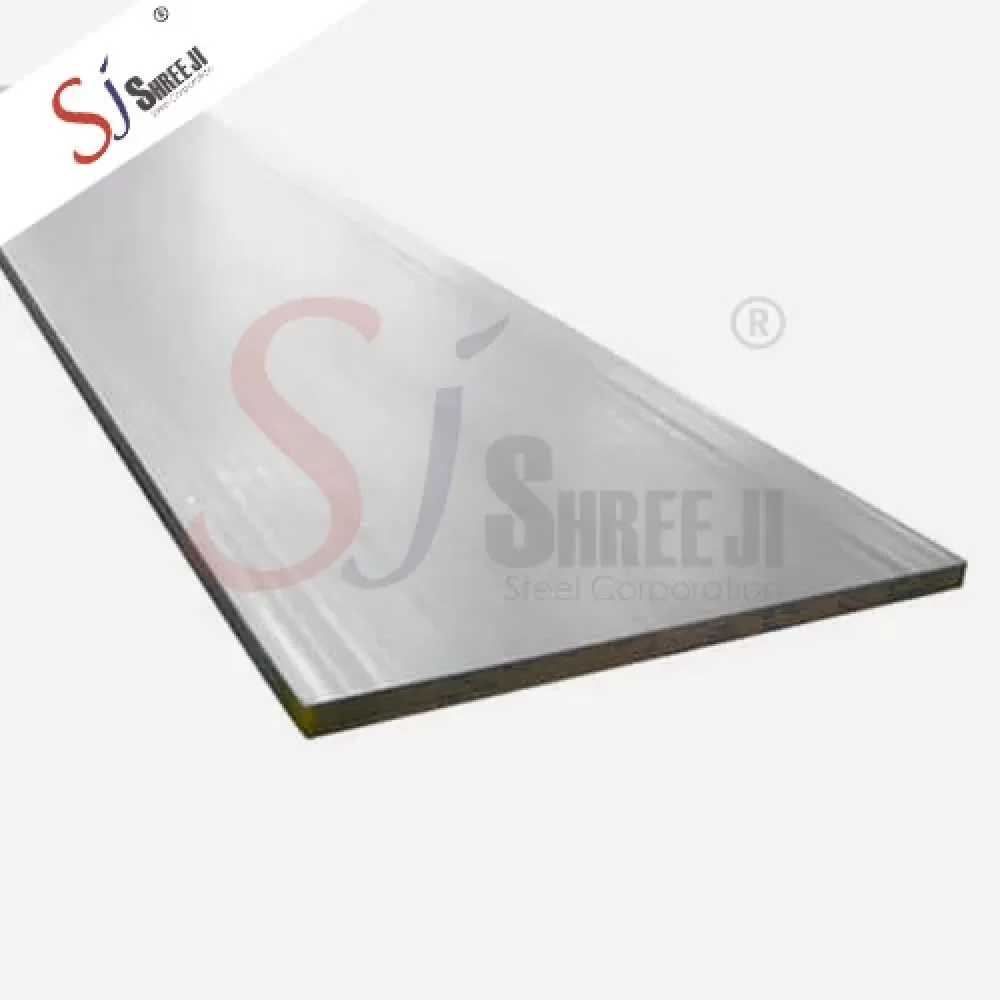

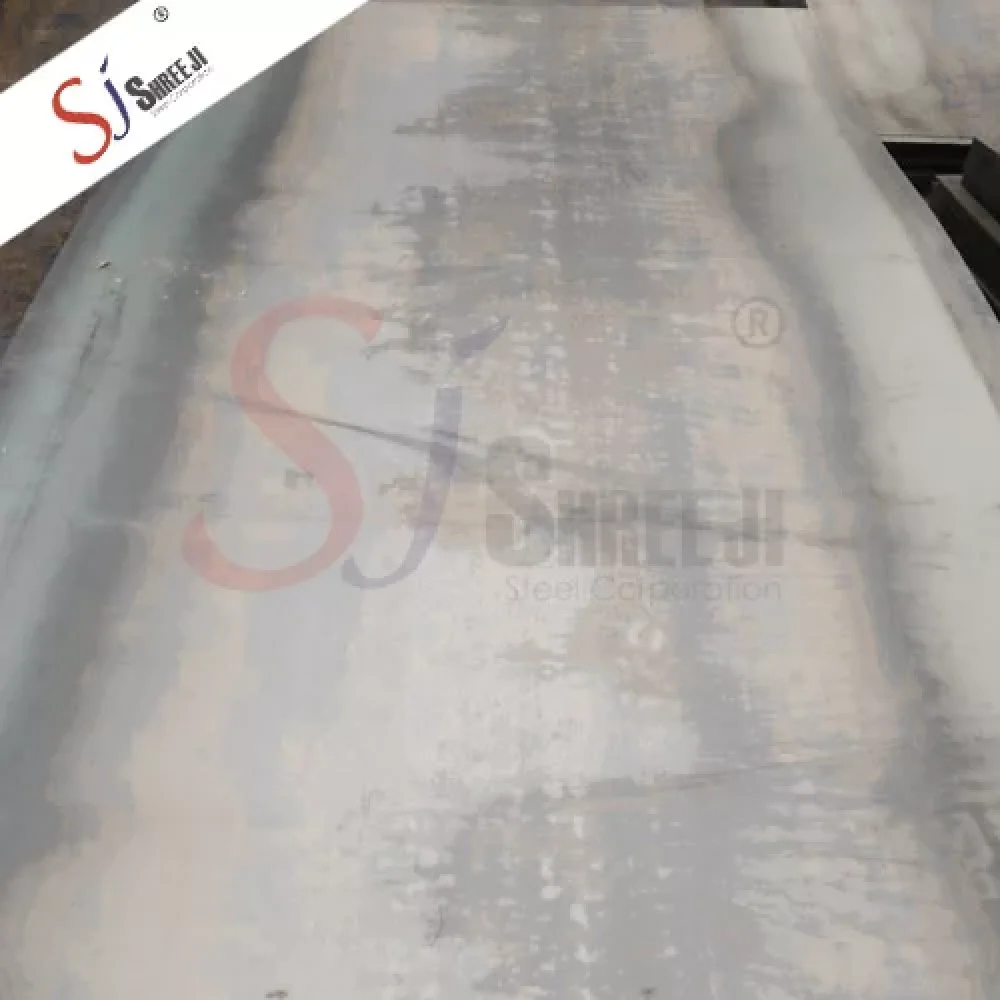

MS Plates

Metal Sheets, also known as Metal Plates or Iron Plates. These are widely used in various industries for their strength and durability. These plates are made from hot-rolled coils or sheets of mild steel, which are processed and shaped into flat plates.

One prominent supplier of MS Plates is Shree Ji Steel Private Limited (formerly Shree Ji Steel Corporation), a trusted name in the steel industry. Shree Ji Steel Corporation, committed to quality and customer satisfaction, offers a comprehensive selection of MS Plates in various sizes, thicknesses and grades to meet the varying needs of their clients.

The company offers a wide range of metal sheets, including iron plates, H R coil, H R rolled sheets, and HR rolled steel. These metal sheets are manufactured using advanced technology and high-quality raw materials, ensuring durability and strength. Whether you need sheets for industrial applications or construction purposes, Shree Ji Steel Corporation has got you covered.

Metal Sheets find applications in various sectors, including construction and fabrication. Due to their excellent strength and ductility, they are used in the construction of bridges, buildings, storage tanks and machinery. MS Plates are also widely utilised in the manufacturing of automobile components, such as chassis, body parts and structural frames.

The versatility of MS Plates lies in their ability to be easily welded, cut and formed into different shapes, making them highly adaptable to different project requirements. They provide structural integrity and stability, ensuring the longevity and safety of the structures.

Whether you need metal sheets for industrial or construction purposes, Shree Ji Private Limited (formerly Shree Ji Steel Corporation) offers a wide range of high-quality metal sheets that cater to various applications. Their commitment to quality, reliability and customer satisfaction has made them a trusted name in the steel industry.

MS PLATE PRICE LIST

ITEAM NAMESIZEPRICEUNIT
MS PLATE1.6mmPrice on RequestPer Ton
MS PLATE1.8mmPrice on RequestPer Ton
MS PLATE2mmPrice on RequestPer Ton
MS PLATE2.5mmPrice on RequestPer Ton
MS PLATE3mmPrice on RequestPer Ton
MS PLATE4mmPrice on RequestPer Ton
MS PLATE5mmPrice on RequestPer Ton
MS PLATE5.5mmPrice on RequestPer Ton
MS PLATE6mmPrice on RequestPer Ton
MS PLATE7mmPrice on RequestPer Ton
MS PLATE8mmPrice on RequestPer Ton
MS PLATE9mmPrice on RequestPer Ton
MS PLATE10mmPrice on RequestPer Ton
MS PLATE12mmPrice on RequestPer Ton
MS PLATE14mmPrice on RequestPer Ton
MS PLATE16mmPrice on RequestPer Ton
MS PLATE18mmPrice on RequestPer Ton
MS PLATE20mmPrice on RequestPer Ton
MS PLATE22mmPrice on RequestPer Ton
MS PLATE25mmPrice on RequestPer Ton
MS PLATE28mmPrice on RequestPer Ton
MS PLATE32mmPrice on RequestPer Ton
MS PLATE36mmPrice on RequestPer Ton
MS PLATE40mmPrice on RequestPer Ton
MS PLATE45mmPrice on RequestPer Ton
MS PLATE50mmPrice on RequestPer Ton

Terms & Condition
1. Dispatch 1-7 working days from receipt of advance.
2. Material is as per IS 2062 E 250 Grade
3. Mill TC can be provided.
4. Actual dispatch quantity may differ +/- 10%.
5. Weight tolerance +/- 0.5% is to be allowed.
6. Products are subject to availability.

Additional Information

Item Diameter in mm Weight Per Meter In KG Weight Per Foot in KG
MS PLATE 1.6mm ms plates weight 12.6 3.84
MS PLATE 1.8mm ms plates weight 14.13 4.31
MS PLATE 2mm ms plates weight 15.7 4.79
MS PLATE 2.5mm ms plates weight 19.621 5.98
MS PLATE 3mm ms plates weight 23.55 7.18
MS PLATE 4mm ms plates weight 31.4 9.57
MS PLATE 5mm ms plates weight 39.2 11.95
MS PLATE 5.5mm ms plates weight 43.2 13.17
MS PLATE 6mm ms plates weight 47.1 14.36
MS PLATE 7mm ms plates weight 55 16.76
MS PLATE 8mm ms plates weight 62.82 19.15
MS PLATE 9mm ms plates weight 70.6 21.52
MS PLATE 10mm ms plates weight 78.5 23.93
MS PLATE 12mm ms plates weight 94.2 28.71
MS PLATE 14mm ms plates weight 109.9 33.50
MS PLATE 16mm ms plates weight 125.6 38.28
MS PLATE 18mm ms plates weight 141.32 43.07
MS PLATE 20mm ms plates weight 157 47.85
MS PLATE 22mm ms plates weight 172.7 52.64
MS PLATE 25mm ms plates weight 192.6 58.71
MS PLATE 28mm ms plates weight 219.8 67.00
MS PLATE 32mm ms plates weight 251.2 76.57
MS PLATE 36mm ms plates weight 282.6 86.14
MS PLATE 40mm ms plates weight 314 95.71
MS PLATE 45mm ms plates weight 353.25 107.67
MS PLATE 50mm ms plates weight 392.5 119.64



TOLERANCES ON THE WIDTH OF METAL PLATES
Length (mm) Width (mm) Thickness (mm) Tolerance on width
Up to and including 8000
Up to and including 2000
Up to and including 20 -0, +10mm
Over 20 -0, +15mm
Up to and including 8000
Over 2000
Up to and including 20 -0, +0.5% of width
Over 20 -0, +20mm
Over 8000
All widths
Up to and including 20 -0, +0.5% of length
Over 20 -0, +0.3% of length
Thickness Tolerance in percentage of Nominal Thickness
Less than 8 mm (+12.5%, -5.0%)
From 8mm up to & including 12 mm (+7.5, -5.0)
Over 12 mm (+/-5.0)
Carbon % Manganese
Max %
Sulphur
Max %
Phosporous
Max %
Silicon
Max %
Corbon
Equivalent
0.23 1.5 0.045 0.045 0.4 0.42
Tensile Strength
Min, Mpa
Yield Stress, Min, MPa % Elongation at gauge length 5.65 √Ѕo Bend Test
mm <20
mm
20-40 mm >40
mm
min min
410 250 240 230 23 3t* (*t is 3 times thickness)

ADDITIONAL INFORMATION
Country Of Origin Made in Bharat (INDIA)
Dispatch Location Durgapur (West Bengal),Raipur (Chattishgarh)
Material Mild Steel
Test Certification ISI Test Certificate
Shape Plate
Size 1.6 mm to 50 mm
Minimum Order Quantity (MOQ) 25 Metric Ton
Packaging Details Bundles
HSN Code 72085110, 72085120, 72085210, 72085330, 72085430, 72083690, 72085220

Do you deliver MS Plate in Gujrat
Yes, we deliver MS Plates to Gujrat.  We, Shree Ji Steel Corp is one of leading trader and supplier of Steel materials in India. We deliver products all over India. Hiowever, the delivery of materials is subject to the  minimum order quantity requirement.

Can you provide testing certificate for the Chequered plates at Shree Ji Steel ?
Yes, we provide MTC (Mill Test Certificates) with the products delivered by Shree Ji Steel Pvt. Ltd.

Do you have Plate IMC ?
Yes, Shree Ji Steel delivers Plate IMC.

MS Plate IS2062 Grade B is available at Shree Ji Steel ?
Shree Ji Steel delivers MS Plate IS2062 Grade MS plate.

Do you have HR Sheet available at Shree Ji Steel Private Limited ?
HR sheet is available at Shree Ji steel private Limited.

Does Shree Ji have MS Plate Grade M2 ?
We do not have MS Plate of M2 Grade at Shree Ji Steel Pvt. Ltd.

What is the grade of Steel used in plates supplied by Shree Ji ?
The grades of the Steel used in the plates are IS2062 S250BR for the plates made from SAIL billet. For the other secondary products, the materials grade is IS2602 E250A.
