MS Beam (Durgapur)

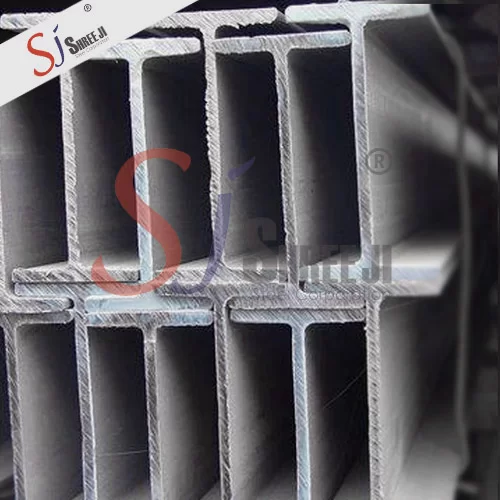

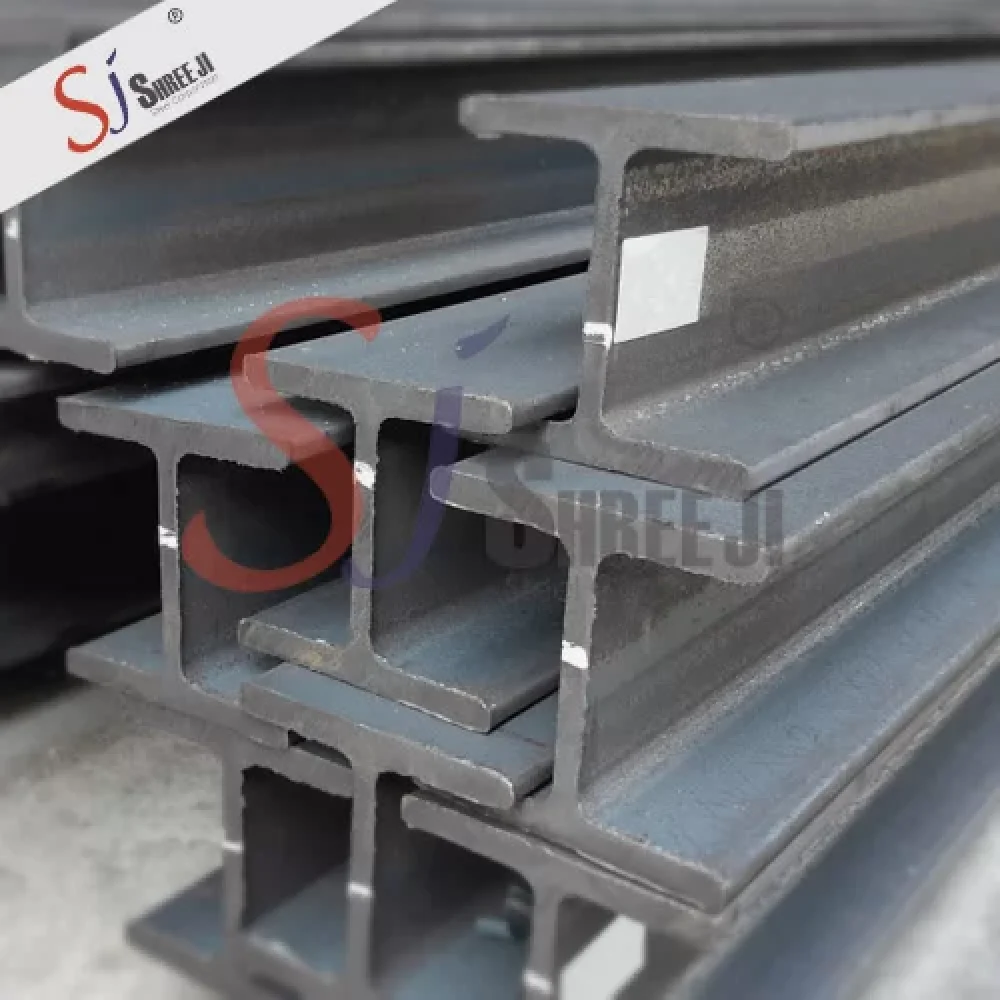

Shree Ji Steel Private Limited (formerly Shree Ji Steel Corporation) provides customers with the finest MS Beam. The company deals with and distributes steel section components to customers located anywhere in the country and worldwide. One of the key components of these steel structures is ISMB 150 (Indian Standard Medium Weight Beam) widely used for its strength and durability. These beams provide structural support and help to distribute the load effectively, ensuring the stability and integrity of the buildings. The ISMB150 section is specifically designed to withstand heavy loads, making it suitable for large-scale constructions.

Steel structures element MS Joist is a versatile material that can be easily fabricated and customised according to the specific requirements of each project. This flexibility allows architects and engineers to design innovative structures that are both functional and aesthetically appealing. Additionally, steel structures offer superior resistance to environmental factors such as earthquakes, strong winds and corrosion. This makes them highly suitable for construction projects, which experience various weather conditions throughout the year.

Structural Steel Element Structural Ms Beam are famous for their longevity and low maintenance requirements. The durability of the steel ensures that these structures can withstand the test of time, resulting in cost savings for maintenance and repairs.

Our esteemed company the Shree Ji Steel Corporation is the most promising and trusted supplier and distributor of steel structure elements, including Ms Beams, MS Joist, structural beams, and steel sections like ISMB150. Our MS Joists are highly functional and durable. We aim to give the best to our customers and clients.

IRON BEAM PRICE

ITEAM NAME	SIZE	PRICE	UNIT
MS BEAM	125mm	₹44,250	Per Ton
MS BEAM	150mm	₹44,250	Per Ton
MS BEAM	175X85mm	₹45,950	Per Ton
MS BEAM	200mm	₹45,000	Per Ton
MS BEAM	250mm	₹46,000	Per Ton
MS BEAM	300mm	₹46,500	Per Ton
MS BEAM	350mm	₹48,250	Per Ton
MS BEAM	400mm	₹48,250	Per Ton
MS H BEAM	152x152mm	₹45,850	Per Ton
Last updated on 21/12/2024 14:37:25

Terms & Condition
1. The rates are ex works Durgapur, West Bengal.
2. GST @ 18% will be charged extra.
3. Loading @ Rs 275/- per mt will be charged extra
4. Transit Insurance will be charged extra @ Rs 40/- per ton.
5. Transportation costs will be charged extra.
6. Payment of 100% advance along with the order. Through bank transfer.
7. Dispatch 1-7 working days from receipt of advance.
8. Material is of commercial grade as per IS 2062.
9. Mill TC can be Provided.
10. Length of material would be 10-14 meter for trailer loading and 5-7 meter for lorry loading.
11. For fixed length, an additional fee of between Rs.500 and Rs.1000 per metric tonne would apply, depending on the size, quantity, and availability of the material.
12. Actual dispatch quantity may differ +/- 10%.
13. Weight tolerance +/- 0.5% is to be allowed.
14. Rates are subject to minimum order quantity.
15. Rates are subject to change as per the hourly market situation
16. Rates at the time of receipt of advance will be final.
17. Offer is valid till the end of business hours today.
18. Products are subject to availability.
19. Above rates are indicative of market prices. Kindly reconfirm the prices before placing an order.

Price Chart History

INCLUDING GST RATE CHART

ITEAM NAME	SIZE	PRICE	UNIT
MS BEAM	125mm	₹52,587	Per Ton
MS BEAM	150mm	₹52,587	Per Ton
MS BEAM	175X85mm	₹54,593	Per Ton
MS BEAM	200mm	₹53,472	Per Ton
MS BEAM	250mm	₹54,652	Per Ton
MS BEAM	300mm	₹55,242	Per Ton
MS BEAM	350mm	₹57,307	Per Ton
MS BEAM	400mm	₹57,307	Per Ton
MS H BEAM	152x152mm	₹54,475	Per Ton
Last updated on 21/12/2024 14:37:25

Terms & Condition
1. The rates are ex works Durgapur, West Bengal.
2. All Rate are including 18% GST.
3. All Rate are including Loading Charges.
4. All Rate are including Transit Insurance Charges.
5. Transportation costs will be charged extra.
6. Payment of 100% advance along with the order. Through bank transfer.
7. Dispatch 1-7 working days from receipt of advance.
8. Material is of commercial grade as per IS 2062.
9. Mill TC can be Provided.
10. Length of material would be 10-14 meter for trailer loading and 5-7 meter for lorry loading.
11. For fixed length, an additional fee of between Rs.500 and Rs.1000 per metric tonne would apply, depending on the size, quantity, and availability of the material.
12. Actual dispatch quantity may differ +/- 10%.
13. Weight tolerance +/- 0.5% is to be allowed.
14. Rates are subject to minimum order quantity.
15. Rates are subject to change as per the hourly market situation
16. Rates at the time of receipt of advance will be final.
17. Offer is valid till the end of business hours today.
18. Products are subject to availability.
19. Above rates are indicative of market prices. Kindly reconfirm the prices before placing an order.

Additional Information

MS Beam Durgapur (ISMB) Historical Price Trend

Item	Size (In mm)	Weight Per Meter In KG	Weight Per Foot in KG	Weight per 12 Meter Pcs (In KG)	Number of Pieces in 1 Metric Ton	Approximate Running Meter Length In 1 (One) Ton
MS Beam	125x70x5mm	13.35	4.07	160	6	75
MS Beam	150x75x5mm	14.96	4.56	180	6	67
MS Beam	175x85x5.8mm	19.5	5.94	234	4	51
MS Beam	200x100x5.7mm	24.17	7.37	290	3	41
MS Beam	250x125x6.9mm	37.3	11.37	448	2	27
MS Beam	300x140x7.7mm	46.02	14.03	552	2	22
MS Beam	350x140x8.1mm	52.33	15.95	628	2	19
MS Beam	400x140x8.9mm	61.55	18.76	739	1	16
H Beam	152x152x7.9mm	37.1	11.31	445	2	27

ISMB WEIGHT CHART

Item	Size (In mm)	Weight Per Meter In KG	Weight Per Foot in KG	Weight per 12 Meter Pcs (In KG)	Number of Pieces in 1 Metric Ton	Approximate Running Meter Length In 1 (One) Ton
MS Beam	125x70x5mm	13.35	4.07	160	6	75
MS Beam	150x75x5mm	14.96	4.56	180	6	67
MS Beam	175x85x5.8mm	19.5	5.94	234	4	51
MS Beam	200x100x5.7mm	24.17	7.37	290	3	41
MS Beam	250x125x6.9mm	37.3	11.37	448	2	27
MS Beam	300x140x7.7mm	46.02	14.03	552	2	22
MS Beam	350x140x8.1mm	52.33	15.95	628	2	19
MS Beam	400x140x8.9mm	61.55	18.76	739	1	16
H Beam	152x152x7.9mm	37.1	11.31	445	2	27

MS BEAM CHEMICAL COMPOSITION: (IN % MAXVALUES)

Carbon %	0.20
ManganeseMax %	0.85
SulphurMax %	0.041
PhosporousMax %	0.043
SiliconMax %	0.27
Carbon Equivalent	0.37

MS BEAM MECHANICAL COMPOSITION: (IN % MAXVALUES)

Tensile Strength Min, Mpa	375
Yield Stress, Min, MPa	563.352
% Elongation atgauge length5.65 √Ѕo	30.78
Bend Test	OK

MS BEAM Sample Test Certificate (TC)

ADDITIONAL INFORMATION OF MS BEAM

Country Of Origin	Made in Bharat (INDIA)
Dispatch Location	Durgapur (West Bengal)
Material	Mild Steel
Test Certification	ISI Test Certificate & Mill TC Available
Shape	Ɪ Shape
Size	125x70mm to 400x140mm
Minimum Order Quantity (MOQ)	25 Metric Ton
Packaging Details	Bundles
HSN Code	72161000, 72163200, 72163300, 72165000, 72163200, 72163200, 72163200

Including GST Price OF MS BEAM

ITEAM NAME	SIZE	PRICE	UNIT
MS BEAM	125mm	₹52,587	Per Ton
MS BEAM	150mm	₹52,587	Per Ton
MS BEAM	175X85mm	₹54,593	Per Ton
MS BEAM	200mm	₹53,472	Per Ton
MS BEAM	250mm	₹54,652	Per Ton
MS BEAM	300mm	₹55,242	Per Ton
MS BEAM	350mm	₹57,307	Per Ton
MS BEAM	400mm	₹57,307	Per Ton
MS H BEAM	152x152mm	₹54,475	Per Ton
Last updated on 21/12/2024 14:37:25

Terms & Conditions :
1. The rates are ex works Durgapur, West Bengal.
2. All Rate are including 18% GST.
3. All Rate are including Loading Charges.
4. All Rate are including Transit Insurance Charges.
5. Transportation costs will be charged extra.
6. Payment of 100% advance along with the order. Through bank transfer.
7. Dispatch 1-7 working days from receipt of advance.
8. Material is of commercial grade as per IS 2062.
9. Mill TC can be Provided.
10. Length of material would be 10-14 meter for trailer loading and 5-7 meter for lorry loading.
11. For fixed length, an additional fee of between Rs.500 and Rs.1000 per metric tonne would apply, depending on the size, quantity, and availability of the material.
12. Actual dispatch quantity may differ +/- 10%.
13. Weight tolerance +/- 0.5% is to be allowed.
14. Rates are subject to minimum order quantity.
15. Rates are subject to change as per the hourly market situation
16. Rates at the time of receipt of advance will be final.
17. Offer is valid till the end of business hours today.
18. Products are subject to availability.
19. Above rates are indicative of market prices. Kindly reconfirm the prices before placing an order.

Frequently Asked Questions (FAQs) ON MS BEAM

What are the available brands of MS Beam in Durgapur ?

The available brands of MS beam in Durgapur are SAIL (Steel Authority of India Limited) and RINL (Rashtriya Ispat Nigam Limited). Apart from that, we also have BSTL, PARAS, SEL TIGER, GAGAN GOLD.

What are the available grades of MS Beam at Shree Ji Steel Pvt. Ltd.? (customer query.)

MS Beams come with different grades to serve different purposes. However, the available grades of the MS Beam available at Shree Ji Steel Corporation is ‘IS2062’.

Do you have MS beam of 40 feet (12 meters) and 06 meters (20 feet) length ?

Yes we have MS Beam of 40 Feet or 12 meters in length. Shree Ji Steel also offers MS beams in 20 feet (6 meters) length.

**Do you have 400*300 I beam available at Shree Ji Steel?**

No, we dont have I beam of 400*300 combination.

I want to check picture before making any decision. How can I check that ?

Yes, you can obviously check the sample pictures in our Website.

Also, it is available on our Facebook page, facebook.com/shreejisteelcorporation/.

It is also available on the Instagram handle of Shree Ji Steel Corporation, instagram.com/shree_ji_steel_corporation/.

Also, you can visit our Pinterest handle to check out the sample pictures in.pinterest.com/shreejisteelcorporation/.

Do you have any primary brand of MS Beam available from Durgapur location?

Yes, we have primary brands available from the Durgapur locations. The available primary brands at Durgapur Location is - SAIL.

Is H beam available at Durgapur Location ?

Yes, H beam available at Durgpur location.

Would you provide MTC (Mill Test Certificates) for the products available from Durgapur ?

Yes, MTC or Mill test Certificate will be given to you.

Do you provide custom cutting services for the products sourced from Durgapur location?

Yes.We, Shree Ji Steel Corporation, can provide the custom cut materials from the Durgapur location based on the requested size and quantity of the materials.

Do you provide galvanised NPB ?

Yes, Shree Ji Steel Corp provides hot-dip galvanised NPB.
