SAIL ISMB

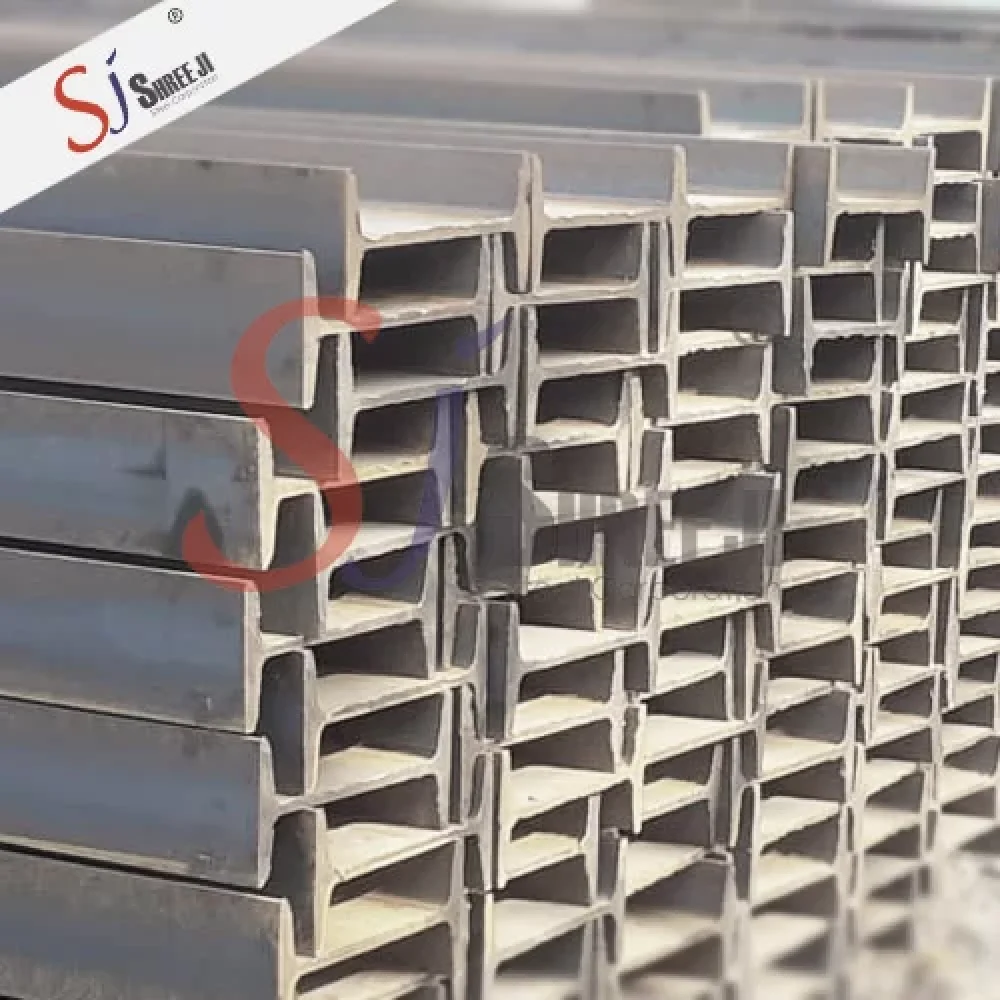

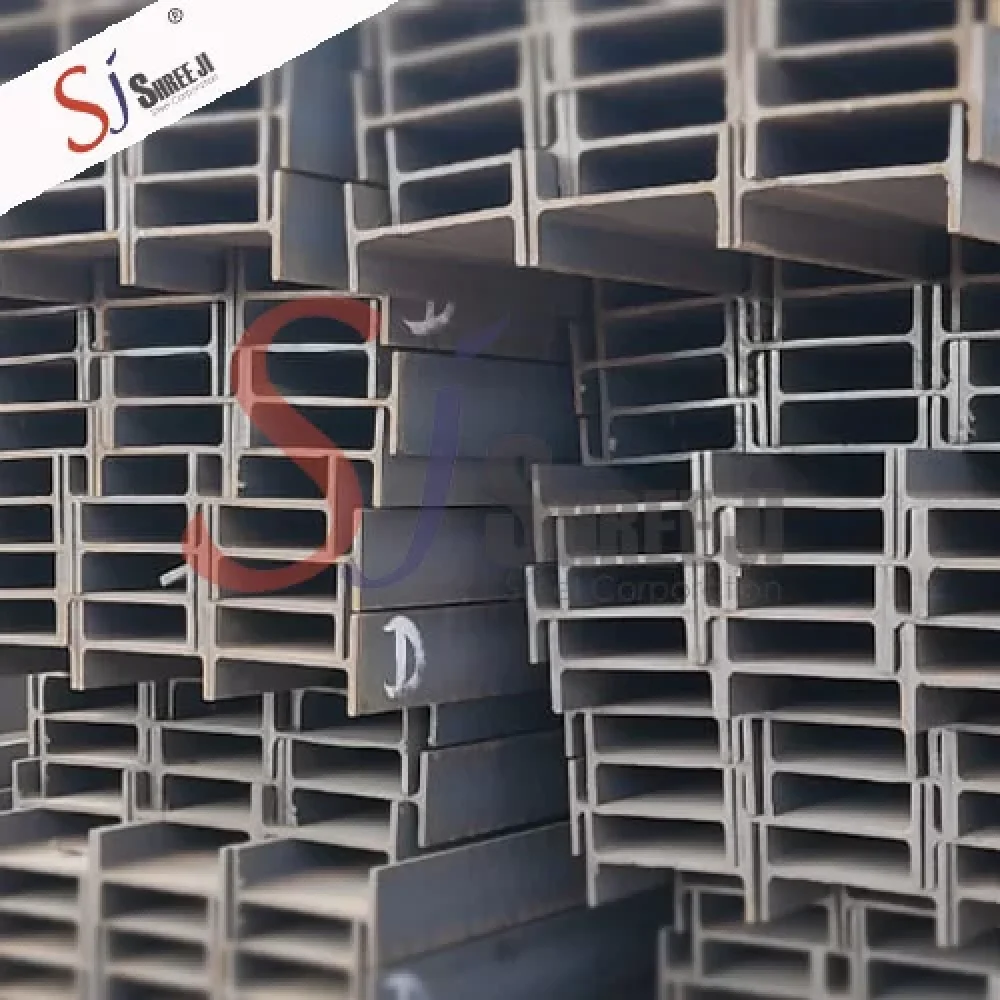

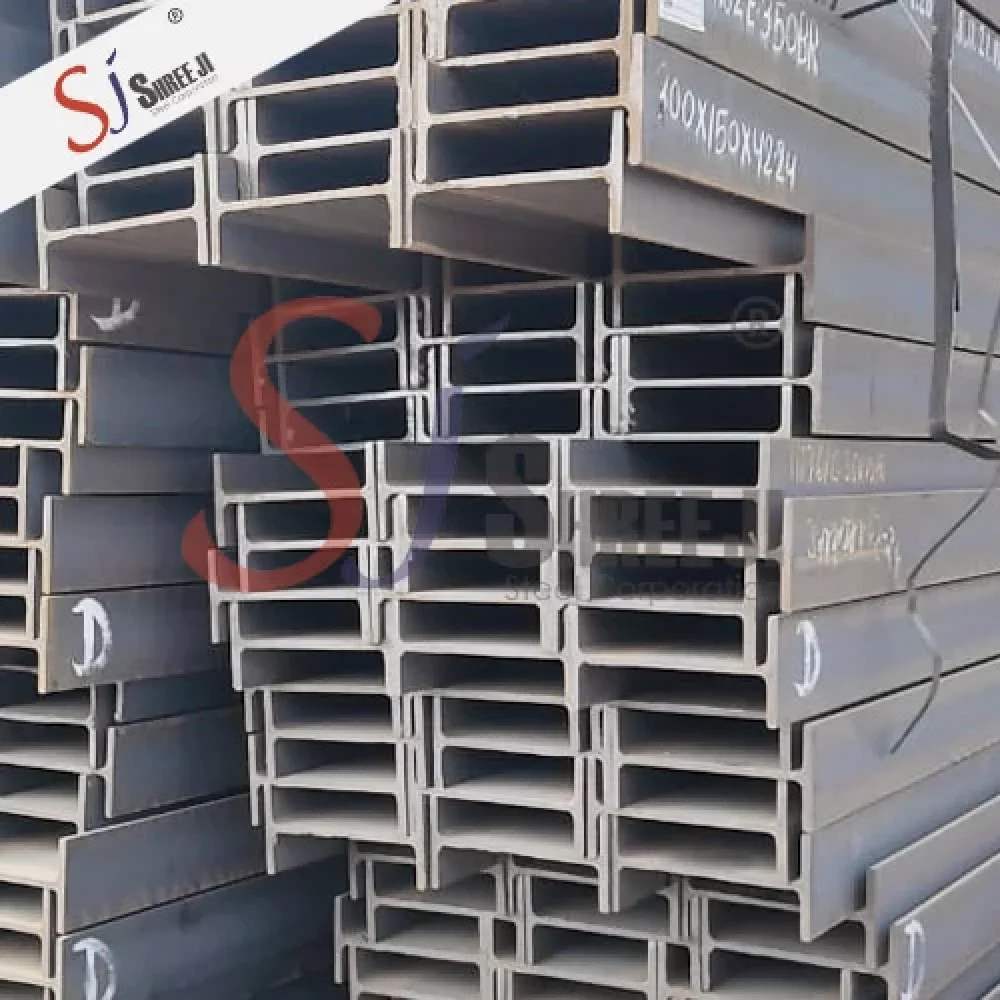

SAIL (Steel Authority of India Limited) Beam or SAIL I Beam is a popular choice in the construction industry for its durability and strength. These beams, also known as SAIL Mild Steel ISMB Beams, are widely used in various structural applications due to their excellent load-bearing capacity.

Shree Ji Steel Private Limited (formerly Shree Ji Steel Corporation) is the most promising, trusted supplier and distributor of SAIL Mild Steel ISMB Beams. The company provides SAIL ISMB with various sizes and dimensions. These beams are designed to withstand heavy loads and provide structural stability to buildings, bridges, industrial plants and other infrastructure projects.

Steel Authority of India Limited (SAIL) is a leading public sector company responsible for manufacturing and distributing high-quality steel products, including ISMB beams. With their strength, durability and adherence to industry standards, these beams ensure the structural integrity and safety of your project.

Shree Ji Steel Private Limited under the umbrella of Steel Authority of India Limited, is a popular choice for structural applications. We ensure that our SAIL Mild Steel ISMB Beams are original and best-quality SAIL products. We offer these products to our clients at very reasonable prices.

SAIL ISMB PRICE LIST

SAIL ISMB PRICE LIST

ITEAM NAME	SIZE	PRICE	UNIT
SAIL ISMB	200x100x5.7mm	Price on Request	Per Ton
SAIL ISMB	250x125x6.9mm	Price on Request	Per Ton
SAIL ISMB	300x140x7.7mm	Price on Request	Per Ton
SAIL ISMB	350x140x8.1mm	Price on Request	Per Ton
SAIL ISMB	400x140x8.9mm	Price on Request	Per Ton
SAIL ISMB	450x150x9.4mm	Price on Request	Per Ton
SAIL ISMB	500x180x10.2mm	Price on Request	Per Ton
SAIL ISMB	600x210x12mm	Price on Request	Per Ton

Terms and Conditions :
1. Dispatch 1-7 working days from receipt of advance.
2. Material is as per IS 2062 E 250 Grade
3. Mill TC can be Provided.
4. Length of material would be 10-14 meter for trailer loading and 5-7 meter for lorry loading.
5. Actual dispatch quantity may differ +/- 10%.
6. Weight tolerance +/- 0.5% is to be allowed.
7. Products are subject to availability.

Additional Information

SAIL ISMB WEIGHT CHART

Item	Size (In mm)	Weight Per Meter In KG	Weight Per Foot in KG	Weight per 12 Meter Pcs (In KG)	Number of Pieces in 1 Metric Ton	Approximate Running Meter Length In 1 (One) Ton
SAIL BEAM	125x70x5mm	13.35	4.07	160	6.24	74.91
SAIL BEAM	150x75x5.0mm	14.96	4.56	180	5.57	66.84
SAIL BEAM	200x100x5.7mm	25.4	7.74	305	3.28	39.37
SAIL BEAM	250x125x6.9mm	37.3	11.37	448	2.23	26.81
SAIL BEAM	300x140x7.7mm	46.1	14.05	553	1.81	21.69
SAIL BEAM	350x140x8.1mm	52.4	15.97	629	1.59	19.08
SAIL BEAM	400x140x8.9mm	61.6	18.78	739	1.35	16.23
SAIL BEAM	450x150x9.4mm	72.4	22.07	869	1.15	13.81
SAIL BEAM	500x180x10.2mm	86.9	26.49	1043	0.96	11.51
SAIL BEAM	600x210x12mm	123	37.49	1476	0.68	8.13

ROLLING TOLERANCES OF SAIL BEAM
Leg length	Tolerance	Leg length	Camber
Up to 45 mm	±1.5 mm	< 100 mm	As per agreement
> 45 mm to 100 mm	± 2.0 mm	> 100 mm	0.2 % of length
> 100 mm	± 2 %

Tolerance on Sectional	Weight
Thickness	Tolerance
Up to 3 mm	± 5 %
Over 3 mm	± 5 %, -3%

SAIL BEAM CHEMICAL COMPOSITION: (IN % MAXVALUES)

Carbon %	ManganeseMax %	SulphurMax %	PhosporousMax %	SiliconMax %	Carbon Equivalent

0.20	0.74	0.040	0.024	0.20	0.323

SAIL BEAM MECHANICAL PROPERTIES: (IN % MAXVALUES)

Grade Designation	Quality	Tensile Strength Rm Min MPa	Yield	Min	Percentage Elongation A , at Gauge Length , L = 5.65 VS Min		Internal Bend Diameter Min	Charpy Impact Test
			< 20	> 40		< 25	> 25	Temp ° ℃	J , Min
	A							-	-
E - 250	BR	410	250	230	23	2t	3t	RT	27
	BO							0	27

SAIL ISMB ADDITIONAL INFORMATION

Country Of Origin	Made in Bharat (INDIA)
Dispatch Location	Durgapur (West Bengal) , Raipur (Chattishgarh)
Material	Mild Steel
Test Certification	SAIL ( Steel Authority of India )Test Certificate
Shape	Ɪ Shape
Minimum Order Quantity (MOQ)	25 Metric Ton
Packaging Details	Bundles
HSN Code	72161000, 72163200, 72163300, 72165000, 72163200, 72163200, 72163200

Additional Information

SAIL ISMB WEIGHT CHART

Item	Size (In mm)	Weight Per Meter In KG	Weight Per Foot in KG	Weight per 12 Meter Pcs (In KG)	Number of Pieces in 1 Metric Ton	Approximate Running Meter Length In 1 (One) Ton
SAIL BEAM	200x100x5.7mm	25.4	7.74	305	3.28	39.37
SAIL BEAM	250x125x6.9mm	37.3	11.37	448	2.23	26.81
SAIL BEAM	300x140x7.7mm	46.1	14.05	553	1.81	21.69
SAIL BEAM	350x140x8.1mm	52.4	15.97	629	1.59	19.08
SAIL BEAM	400x140x8.9mm	61.6	18.78	739	1.35	16.23
SAIL BEAM	450x150x9.4mm	72.4	22.07	869	1.15	13.81
SAIL BEAM	500x180x10.2mm	86.9	26.49	1043	0.96	11.51
SAIL BEAM	600x210x12mm	123	37.49	1476	0.68	8.13

ROLLING TOLERANCES OF SAIL BEAM
Leg length	Tolerance	Leg length	Camber
Up to 45 mm	±1.5 mm	< 100 mm	As per agreement
> 45 mm to 100 mm	± 2.0 mm	> 100 mm	0.2 % of length
> 100 mm	± 2 %

Tolerance on Sectional	Weight
Thickness	Tolerance
Up to 3 mm	± 5 %
Over 3 mm	± 5 %, -3%

SAIL BEAM CHEMICAL COMPOSITION: (IN % MAXVALUES)

Sizes	Carbon (%)	Manganese	Sulphur (%)	Phosphorus (%)	%C.E
8mm	0.15	0.61	0.031	0.035	0.25
10mm	0.14	0.56	0.032	0.035	0.23
12mm	0.15	0.63	0.031	0.038	0.26
16mm	0.13	0.57	0.031	0.038	0.23
20mm	0.14	0.61	0.032	0.035	0.24

SAIL BEAM MECHANICAL PROPERTIES: (IN % MAXVALUES)

Grade Designation	Quality	Tensile Strength Rm Min MPa	Yield	Min	Percentage Elongation A , at Gauge Length , L = 5.65 VS Min		Internal Bend Diameter Min	Charpy Impact Test
			< 20	> 40		< 25	> 25	Temp ° ℃	J , Min
	A							-	-
E - 250	BR	410	250	230	23	2t	3t	RT	27
	BO							0	27

Sample Test Certificate of SAIL BEAM

SAIL ISMB ADDITIONAL INFORMATION

Country Of Origin	Made in Bharat (INDIA)
Dispatch Location	Durgapur (West Bengal) , Raipur (Chattishgarh)
Material	Mild Steel
Test Certification	SAIL ( Steel Authority of India )Test Certificate
Shape	Ɪ Shape
Minimum Order Quantity (MOQ)	25 Metric Ton
Packaging Details	Bundles
HSN Code	72161000, 72163200, 72163300, 72165000, 72163200, 72163200, 72163200

Frequently Asked Questions (FAQs) on SAIL ISMB

Will it be used in the MES and Railway projects ?

SAIL or Steel authority of Indian limited is one of the leading primary brand of steel products in India. All the products of the SAIL are entitled to pass all the tests imposed on Steel products before their use in any project. Thus, it can be stated that, SAIL TMT can be used in the MES and Railway priojects.

What is the Minimum order quantity of the SAIL beam?

The minimum order quantity of SAIL beam is 25 tons.

Can I get both standard and customised beam sizes from SAIL?

No, customised beams can not be aviled from Shree ji Steel. At the same time, all the beams sourced from SAIL are of standard length.

Does SAIL has different types of beams such as I-beams, H-beams, or Universal beams?

Yes, SAIL has different conbinatins of beams, such as I beams, H Beams, UC Beams.

What is the grade of the SAIL beam?

The grade of the available SAIL beam at Shree Ji Steel are of IS 2062 E 250 grade.

Are SAIL beams suitable for high-rise construction or heavy industrial applications?

Yes, SAIL bemas are suitable for the high rise construction s and heavy industrial operations.

Are there any extra costs involved, such as taxes or handling fees after placing the order with token money ?

All the costs are mentioned in terms and conditions. Generally loading charge, GST and insurance for transportation are charged extra.

Can I track my order once the beams have been dispatched?

Yes, after you place the order with us, you would be notified in every stages status of delivery. Starting from the loading process to the delivery at your location, you would be connected to our customer care team. You would also be updated about your shipment status, through our customer care WhatsApp Group.

Are the beams can be transported in a Surface transportation services.

The mode of transport utlised by Shree Ji Steel private limited is usually surface transport services. However, in case of special need, the alternate method of transportation can be opted. Still, all the materials are transported mostly using the surface transportation process.
